Product Info
Product Description
SN-UV
- UV/Water-Based Coating
- Chamber Doctor Blade System
- Ceramic Anilox Roller
- Forced Lubrication System
- PLC Electric Control System
- Slow Down Driving System
- Auto Speed Control Device
- Safety Cover Detector Device
- Easy Understanding of Indicating Panel
- Safety Stop for Sheet Sticking on Bracket
Contact
Technical Data
| Specification | SN-UV |
|---|---|
| Max. Sheet Size | 720×1020 mm |
| Min. Sheet Size | 360×540 mm |
| Max. Printing Coating Area | 710×1010 mm |
| Thickness of Sheet | 0.06-0.85 mm |
| Max. Mechanical Speed | 10000 Sheets/HR |
| Work Speed | 6000~8000 Sheets/HR |
| Min. Mechanical Speed | 3000 Sheets/HR |
| Pile Height of Feeder | 1000 mm |
| Pile Height of Delivery | 1100 mm |
| Max. Paper Weight | 1000 kgs |
| Main Motor | 10 HP |
| Total Power | 20 HP |
| UV Dry System | 13kw×3 = 39kw (air cooling) |

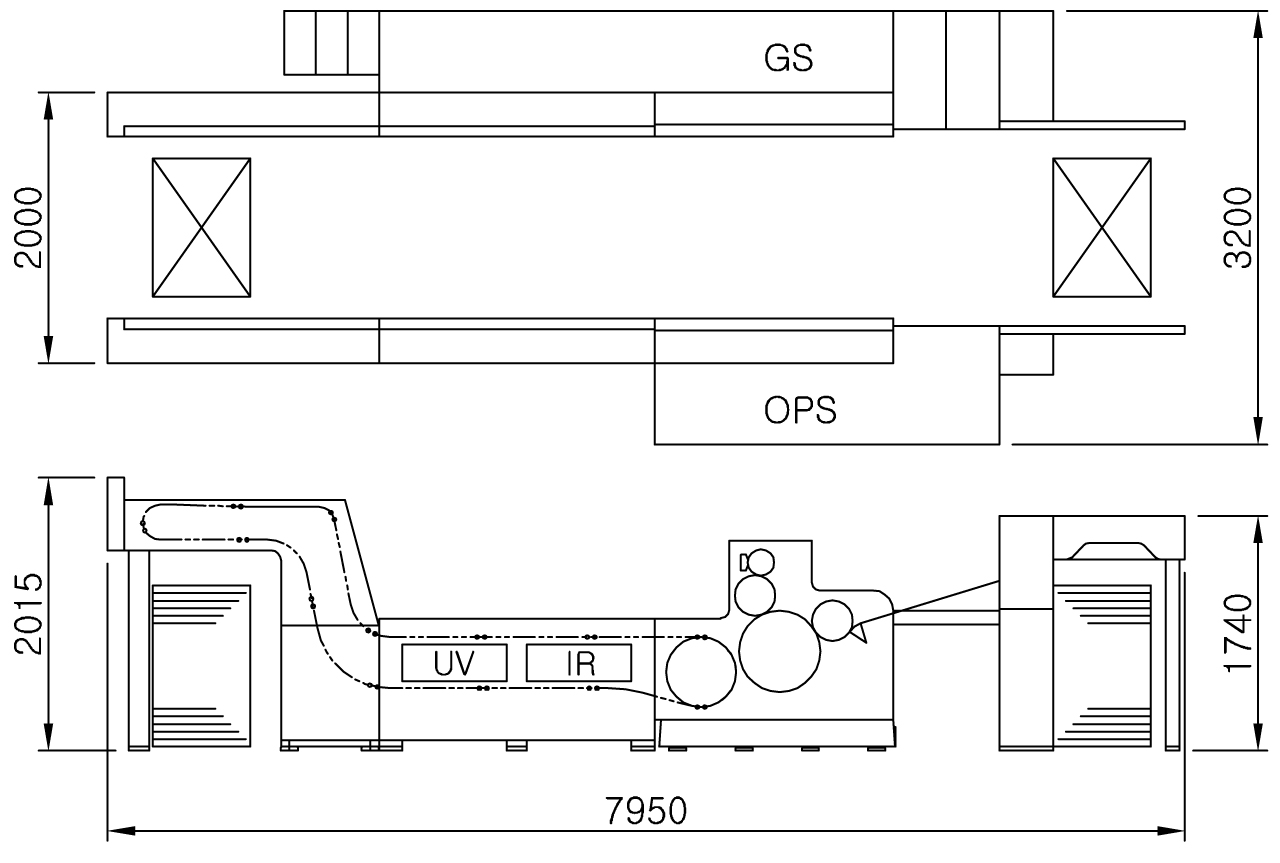

| Floor Space (L×W×H)mm | 7950×3200×2015 |
| Appx. Weight | 6000 kgs |
