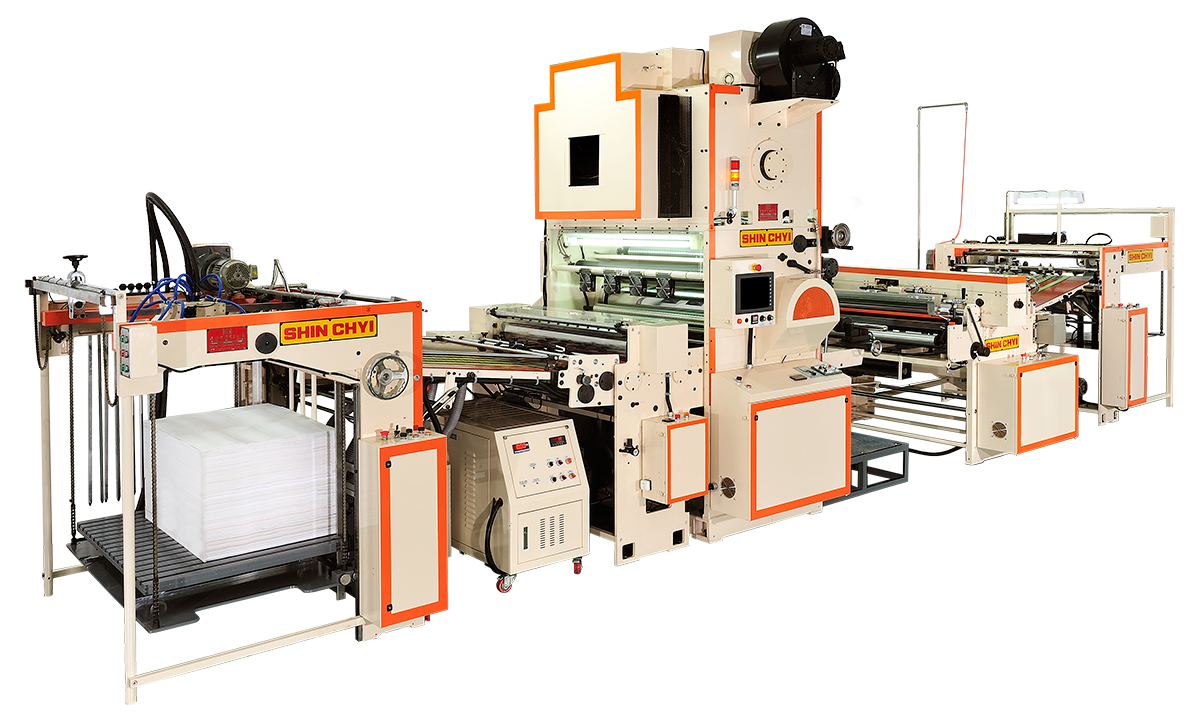

Auto Laminating Machine Drum Heating System

HSL-CAP (Chain Knife System for Pet Flim)
HSL-CDWPN
Waterbase Chain Knife System with Dust Collecting Device and Non-Stop Feeder.

Product Info

Model HSL-CAP
Name Auto Laminating Machine Drum Heating System
Video https://youtu.be/8hjdB51Sz6c
Company

Product Description

HSL-CDWP
  • Stream Feeder
  • Drum Heating System
  • Automatic Hydraulic System
  • Rotary Separating Device
  • Auto Pressing Film System
  • Chain Knife Separating System, Patent
  • Waste Film, Auto Rewinding
  • Ratio Control Between Main Unit and Coating System

Contact

shinchyi@ms29.hinet.net

Technical Data
Specification HSL-CDWP
Laminating Width 1150 mm
Mechanical Speed 50 M/min
Total Power 66kw
Water Heater 29kw

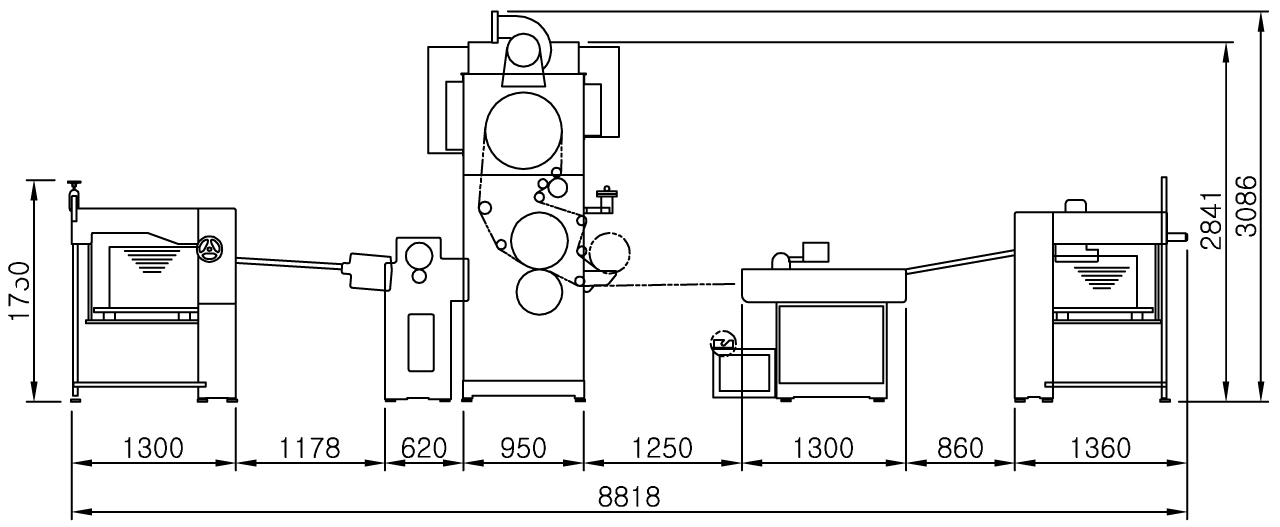

Floor Space (L×W×H)mm 9000×2500×3100
Appx. Weight 9500kg
